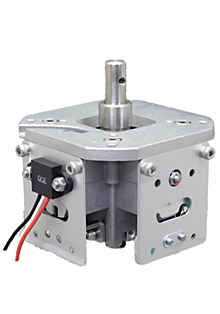

BJ2

Hall IC type
Waterproof potentiometer & microswitch
(Drawing)

■Feature

  • High intensity type
  • Vibration proof and high durability by Hall IC
  • Output characteristic can be adjustable (Option)
  • High quality, low cost
  • easy to feel operating direction by self neutral return

■Standard specification

Substantial specification
Travel angle from neutral position ＋/-20℃
Return to neutral position Automatic (spring type)
Mechanical life, single direction 2.5 million times (ambient temp.)
Vibration proof JIS D 1601 category 3 and A level 45
Water proof Lever shaft (non protection)
Operating temperature range -30℃～+70℃ (non frozen)
Lever operating force Less than 0.862N・m
Lever angle strength till damage More than 65N・m（≒565N×115mm）
Specification of hall IC
Input voltage DC5V +/-0.5V
Consumption current Less than 16mA
Resistance load More than 10kΩ
Water proof JIS C 0920 IP67
Withstand electromagnet 100V/m, 1～1000MHz
satisfied with electrical characteristics
Withstand electricstatics Not brake, to impress +/-8KV
of electrostatic voltage
more than 10 times every 1 sec.
Temprature drift +/-0.4%Vin Temperature range '-30℃～70℃
(nominal : 25℃)
Specification of microswitch
Rated load DC30V 0.1A (resistance load)
Electrical durability 200K times (rated load)
Mechanical durability 5 million times
Protect construction IP67

*For improvement, specification are subject to change without prior notice.



BJ2

*RoHS compliant
