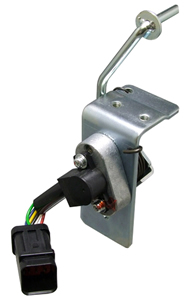

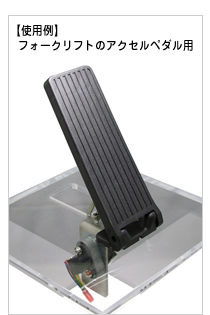

Accelerator Assy’
Hall IC
(Drawing)
■Feature
- High vibration proof and high durability by adoption of Hall IC
- Correspond to fail-safe by supporting spring
- Acceptable to adjust output characteristics (Option)
- Low cost
- Unnecessary to calibrate at assembling
■Standard specification
| Return to idle position |
automatic (spring) |
|---|---|
| Return torque, arm (0°～35°) |
Main 0.6～1.1Nm Sub 0.3～0.4Nm Total 0.9～1.5Nm |
| Allowable angle of arm rotation | 55°(without stopper) |
| Allowable load of arm | less than 40N (at roller shaft) |
| Mechanical life | more than 5million cycles (within output fluctuation, ambient temperature) |
| Operating temperature range | -30℃～+80℃ (except freeze and dew) |
| Vibration proof | JIS D 1601 3 A stage45 |
| Water proof | JIS D 0203 S1 |
| Input voltage | DC5V +/-0.5V (+V1, V2) |
|---|---|
| Detecting method | Hall IC (non contact) |
| Output method | dual signals, voltage output (independent power) |
| Effective electrical angle | OUT1:-27°～+27° OUT2:-24°～+27° |
| Consumption current | less than 20mA |
| Withstand vibration | 200m/s2, 5～500Hz, 12min, 3 axis 2 hrs each (ambient temperature) |
| Withstand shock | 1000m/s2, 6ms, 3 axis 3 times each (ambient temperature) |
| Withstand electromagnetic (EMS) | 100V/m, 200MHz～1GHz (ISO11452-2) Output fluctuation +/-1%Vin |
| Withstand electrostatic (ESD) | +/-8KV (IEC61000-4-2) |
| Protection grade | IP65 (IEC) |
*For improvement, specification are subject to change without prior notice.
